CNC Side Tracking Bit

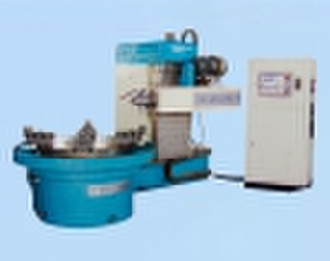

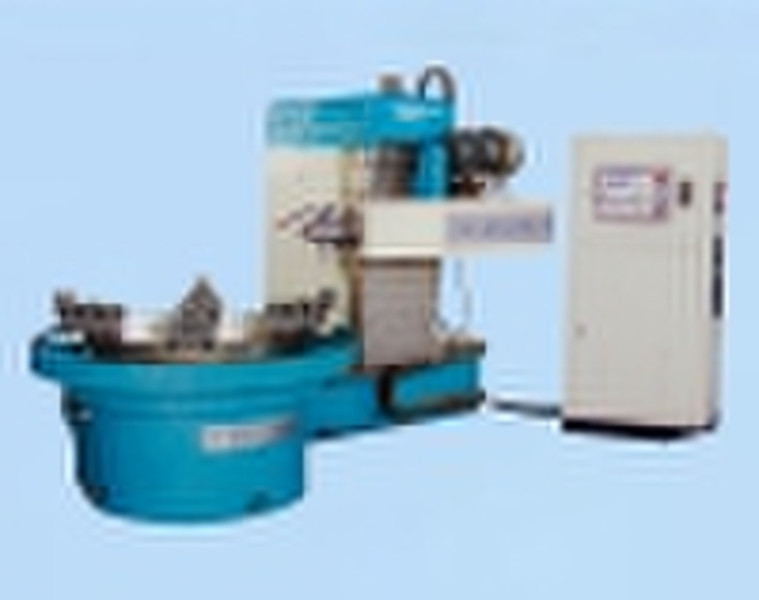

CNC Side Tracking BitHTK6110 CNC Side Tracking Bit withrotary tableis a lathe with single vertical column which is specially processed and developed by our company for the side face of tyre mould,slewing bearing, tube sheet,steamer impeller, and disc-type parts like flange plate. It can complete the processing of milling, boring, drilling and reaming, and mill any curving slot, carve any picture and character etc. This tool adopts traverse platform and three-axis numerical control system, which makes it operate steadily, and remain high rigidity and precision. The interface is displayed with English, which can be input by the keyboard. It is easy and convenient to operate. Technical Parameter List of HTK6110 CNCSide Tracking Bit with Gyration Table Workbench Dia.mm1000Boring Spindle Dia.mm100Taper Hole of Boring Spindle morse taper 5# Stroke of Boring SpindleY-axismm500Longitudinal Travel of Columnmm500Vertical Travel of HeadstockZ-axismm500Rotary Angle of WorkbenchC-axis360oDia. of the Processed Maximum Workpiecemm2000Height of the Processed Maximum Workpiecemm500Parameter of Principal Electronic Axes4kw960r/minRotary Speed of Principal Electronic Axesr/min0100 Maximum Bearing of Machine Toolt3Total Weight of Machine Toolt6.2External Dimension of Machine ToolL×W×Hmm×mm×mm2880×1677.5×1980
